Sequence DSM¶

From Excel click...

QXL Stat Tools Tab > DSM > Sequence DSM

Sequencing DSM is a process of reordering DSM columns and rows so that the resulting DSM does not contain feedback marks, or they are as close as possible to the diagonal. Feedback marks are located to the right of the matrix diagonal, so the resulting DSM should be in lower triangular form (if possible). Quantum XL uses the path search algorithm to sequence DSM.

Example¶

Before partitioning...

DSM before sequencing

After partitioning...

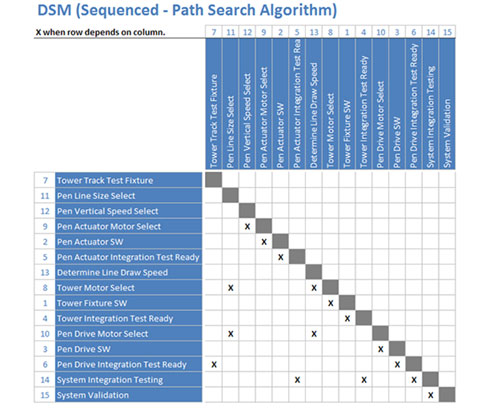

DSM After Partitioning
